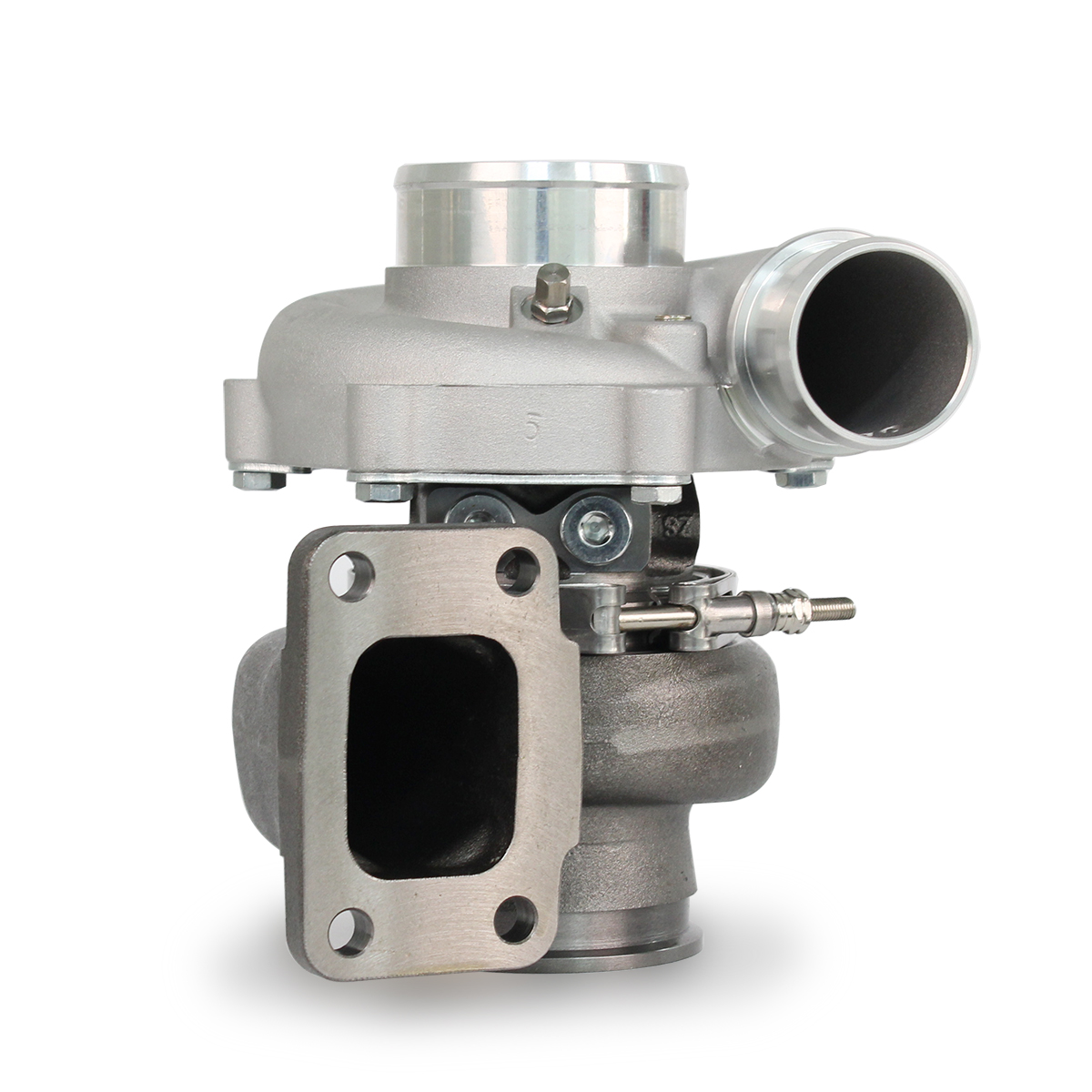

VSR Gen3 54/55mm Dual-Ball Bearing (Reverse Available)

Description

 DBB  gen3 C.W.(54×67)|T.W(60*55)

• Dual Ceramic ball bearing
• 9 Blade   Billet Compressor Wheel with Extended Tapered Tip Technology
• 9 Blade Inconel 713c Turbine Wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Oil and water cooled center section

Description

• Compressor Wheel: 54*67mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: 2.5″ V-Band
• Turbine Outlet: 3″ V-Band
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange small frame 1.5″ bolt spacing

Turbine Options: T3.82 Vband/0.83 D-Vband/1.01 D-Vband/1.21 D-Vband

Turbine outlet 3″ vband discharge on all models 3″ Vband clamp/flange for 61/62, 62/62, 67/62 or 58/55 VSR turbine housings – VSRacing (turbo4less.com)

Turbine inlet for dual v-bands 2.5″ Vband inlet clamp/flange for dual vband housings for 61/62, 62/62, 67/62 or 58/55 VSR turbine housings – VSRacing (turbo4less.com)

Installation package for the drain and water fittings recommend use our kit below Turbo Installation Package for 61/62 62/62 58/55 67/62 dbb unit – VSRacing (turbo4less.com)
