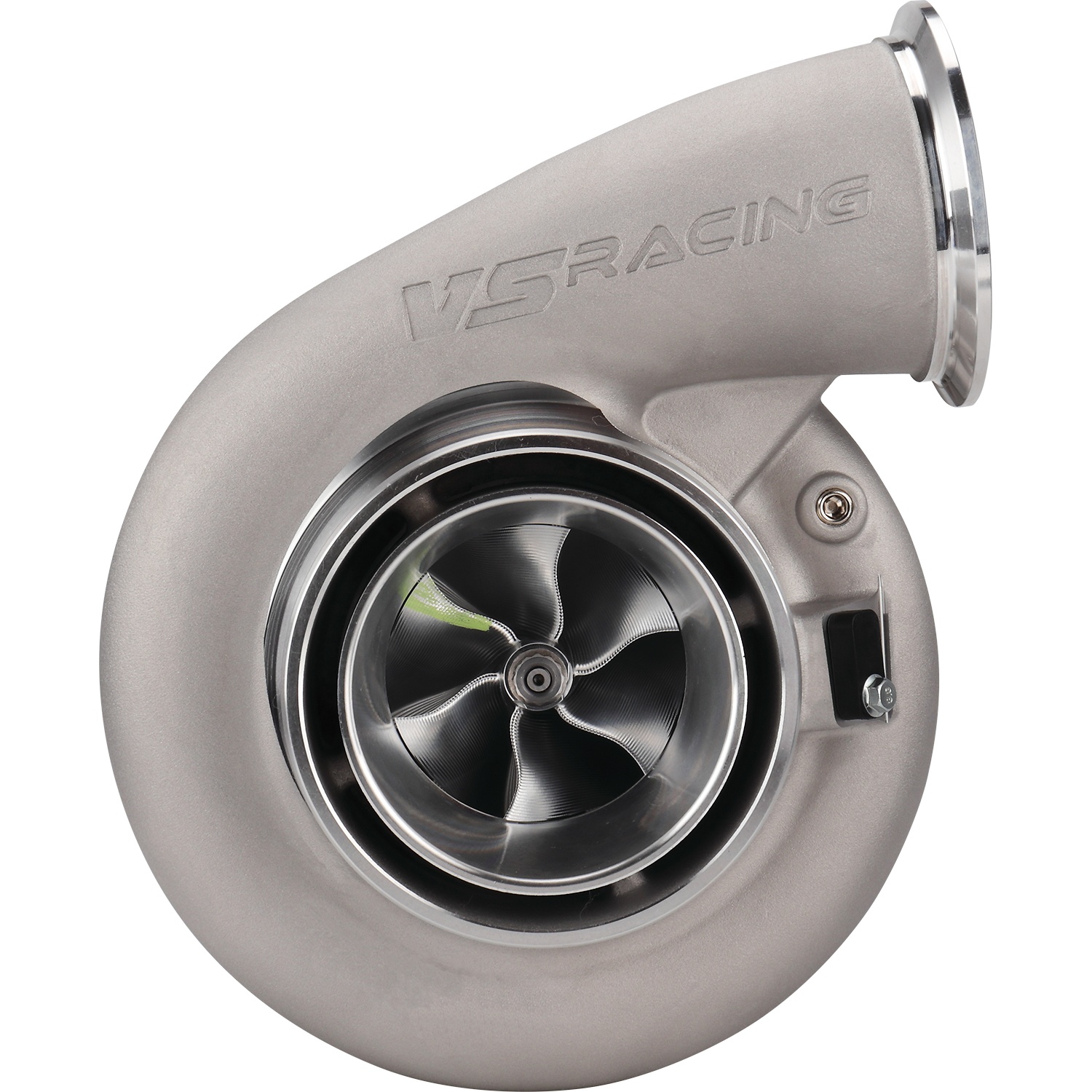

VSR Gen3 Billet 78/75
Specs 78/102 High Flow Aero Point Milled Compressor
Turbine 82/75 9 Blade High Efficiency Turbine wheel
Compressor Outlet Std S400/ProMod/GT47 Vband https://turbo4less.com/product/s400-gt42-gt45-compressor-outlet-vband-assembly/
Turbine Outlet 4″ on T4 1.25 PN S400T4FL
Turbine Outlet 3″ on T4 .96ar PN T763VCL
Turbine Outlet 3.5″ on Dual V-band .96ar PN 35Vband
Oil Drain Thread Pitch M8 x 1.25
Oil feed 1/8 npt to -4 an is recommend
| Weight | 30 lbs |
|---|---|
| Dimensions | 14 × 14 × 14 in |
| turbine-housing | .96ar Dual v-band, .96ar T4, .96ar T4 reverse, 1.01 Dual V-band Normal Rotation, 1.01 Dual V-band Reverse, 1.25ar Divided T4, 1.25AR T4 Reverse, 1.28 Dual V-band Normal Rotation, 1.28 Dual V-band Reverse |
Only logged in customers who have purchased this product may leave a review.
Billet 75mm mated to our 96x88mm Turbine in 1.32ar T6 Divided housing
Twin GT3582 .82ar T3 units Vband discharge made by VSRacing these are not Garrett units.
80mm Billet T6 unit. We have been working on this for quite some time and finally got around to doing it.
SPECS
80mm Billet Compressor wheel
96/88 Turbine Wheel
1.32 ar T6 divided Turbine Housing
Tampa Performance Inc. (verified owner) –
The king of 78/75 compressor airflow.
“I want to max out my turbo on my 4.8/5.3 on E85 and still want it responsive” This is for you.
