Spec
Compressor: 76/102
Turbine: 65/74
Turbine Options: .68ar .81ar .96ar
Compressor Outlet : 2.5″
Turbine Outlet: 3″ Vband OD is 3 and 5/8
Oil Feed: 1/8npt to 4an
Oil Drain: included 10an angled 2″ bolt spacing M8x1.25 thread pitch
Inlet Flange: T4 undivided
| Weight | 22 lbs |
|---|---|
| Dimensions | 14 × 14 × 14 in |
Only logged in customers who have purchased this product may leave a review.

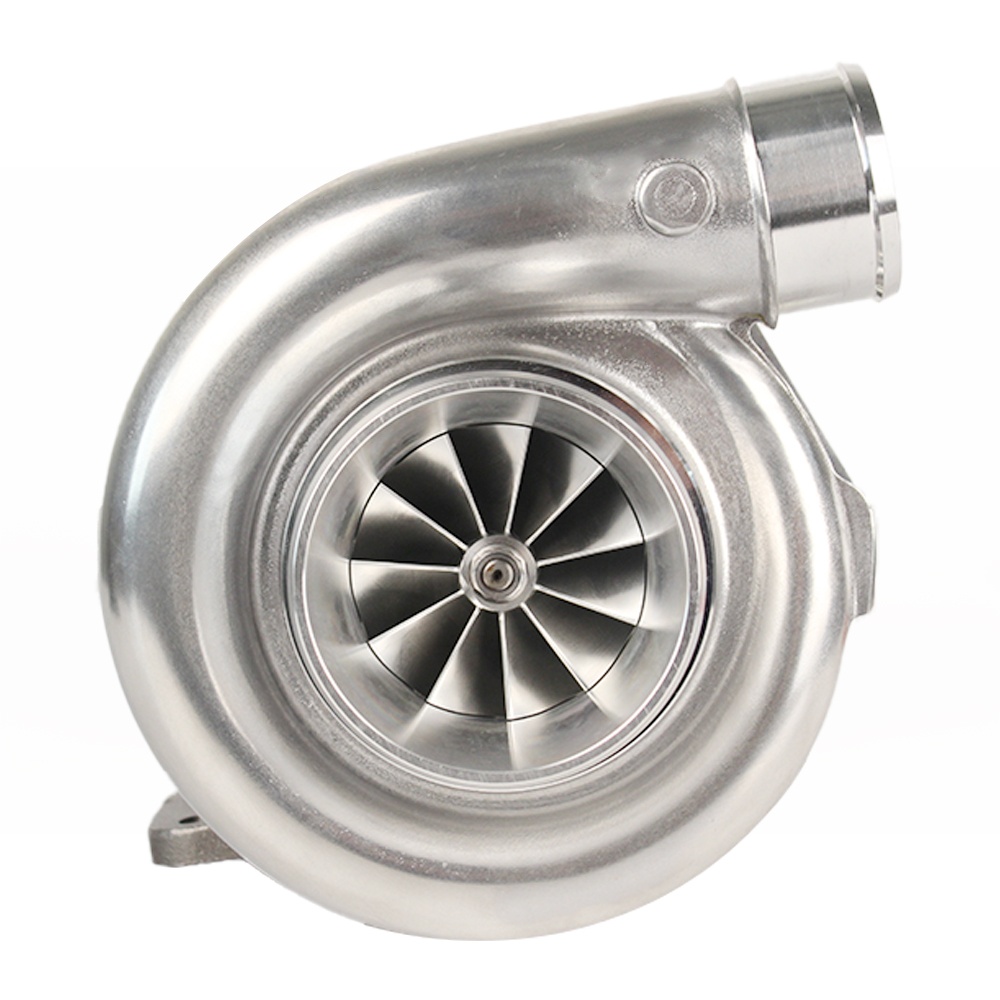

Billet 75mm mated to our 96x88mm Turbine in 1.32ar T6 Divided housing
80mm Billet T6 unit. We have been working on this for quite some time and finally got around to doing it.
SPECS
80mm Billet Compressor wheel
96/88 Turbine Wheel
1.32 ar T6 divided Turbine Housing
