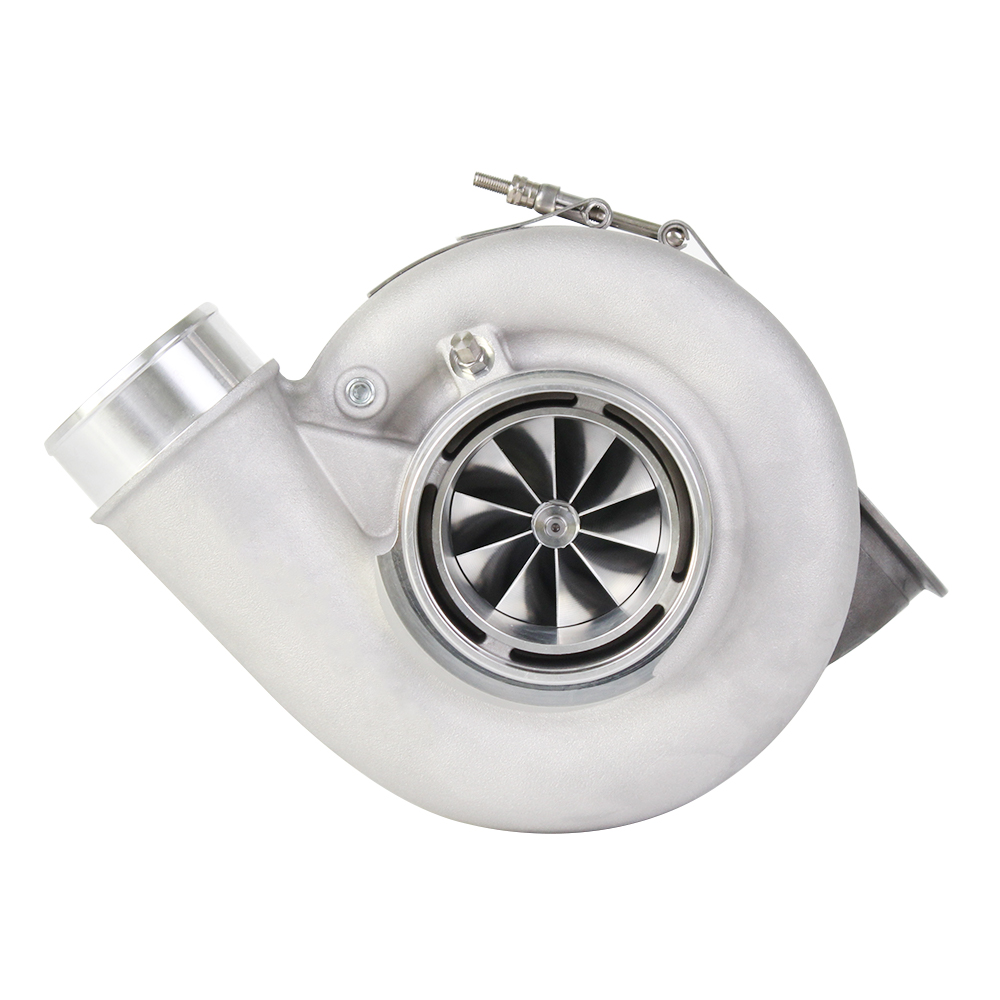

Name: VSR 73mm/G42 Journal Bearing T4, Dual V-band and Reverse Options
SKU: ST-G42-2XX-1
Availability: InStock

VSR 73mm/G42 Journal Bearing T4, Dual V-band and Reverse Options

Description

10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

Compressor Wheel: 73*91mm
Turbine Wheel: 82*75mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 3″ hose slip fit
Turbine Outlet: 3.5″ V-Band
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)
Oil Drain: -12AN s400 based 2″ bolt spacing
6 Options in Turbine Housing: T4(Open) 1.15 A/R, T4(Divided) 1.15 A/R, T4(Divided) 1.28 A/R, dual v-band 1.01, 1.15 and 1.28 housings

Additional information

Weight	32 lbs
Dimensions	16 × 16 × 16 in
turbine-housing	1.01 Dual V-Band , 1.01 Dual V-band Reverse Rotation , 1.15 Divided T4 Normal Rotation , 1.15 Dual V-band , 1.15 Dual V-band Reverse Rotation , 1.25 Divided T4 Normal Rotation , 1.28 Dual V-Band , 1.28 Dual V-band Reverse Rotation
