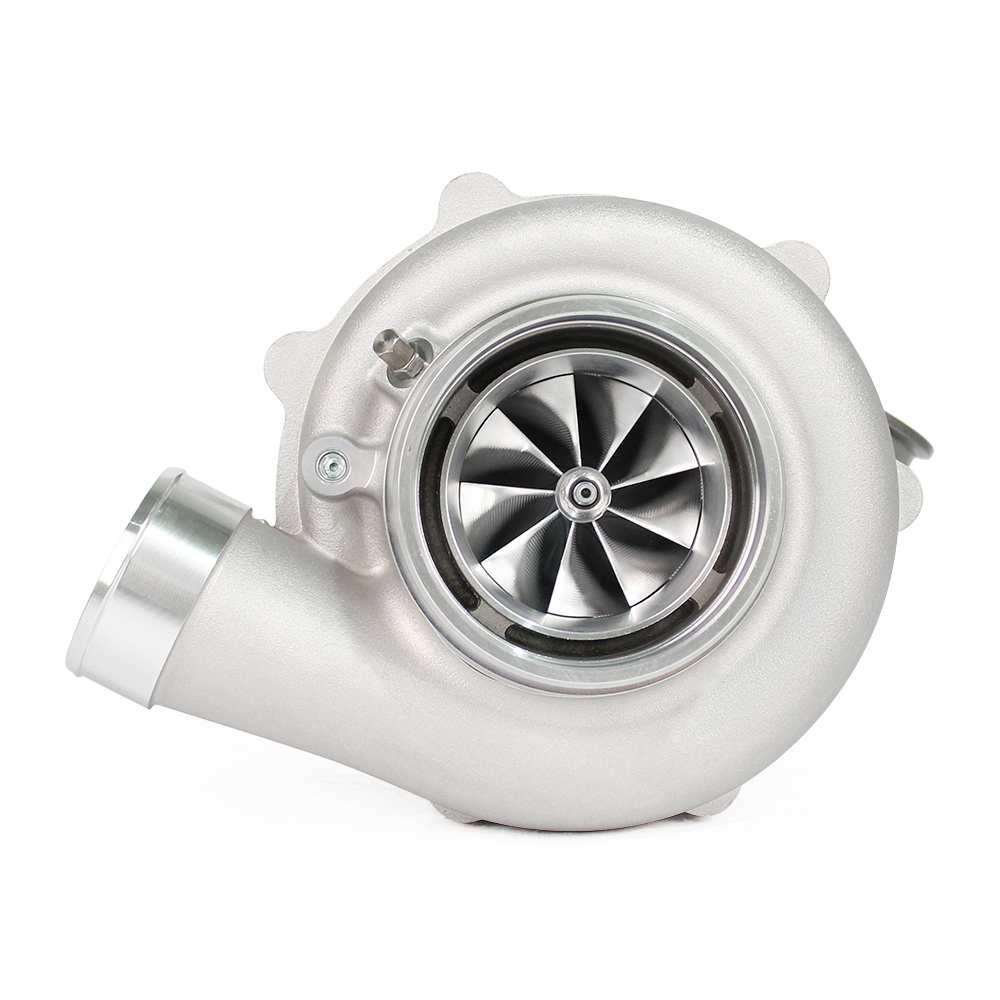

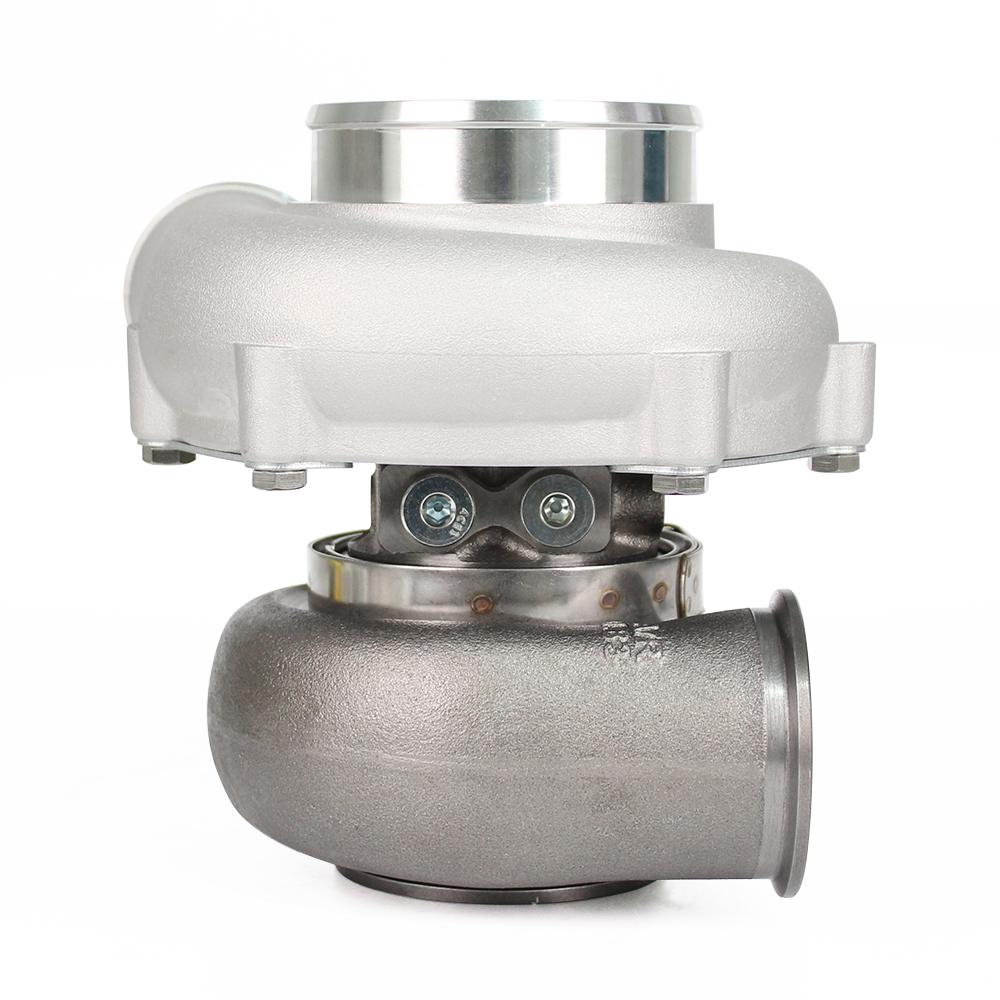

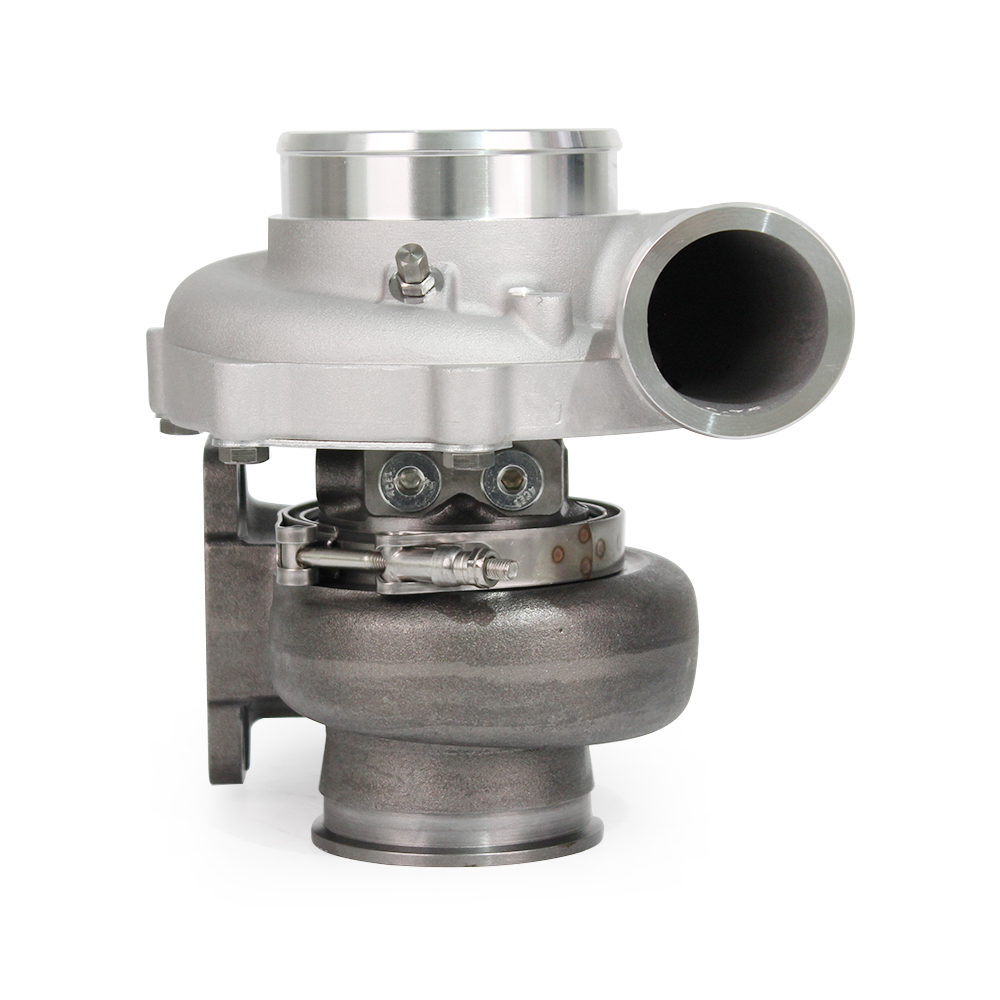

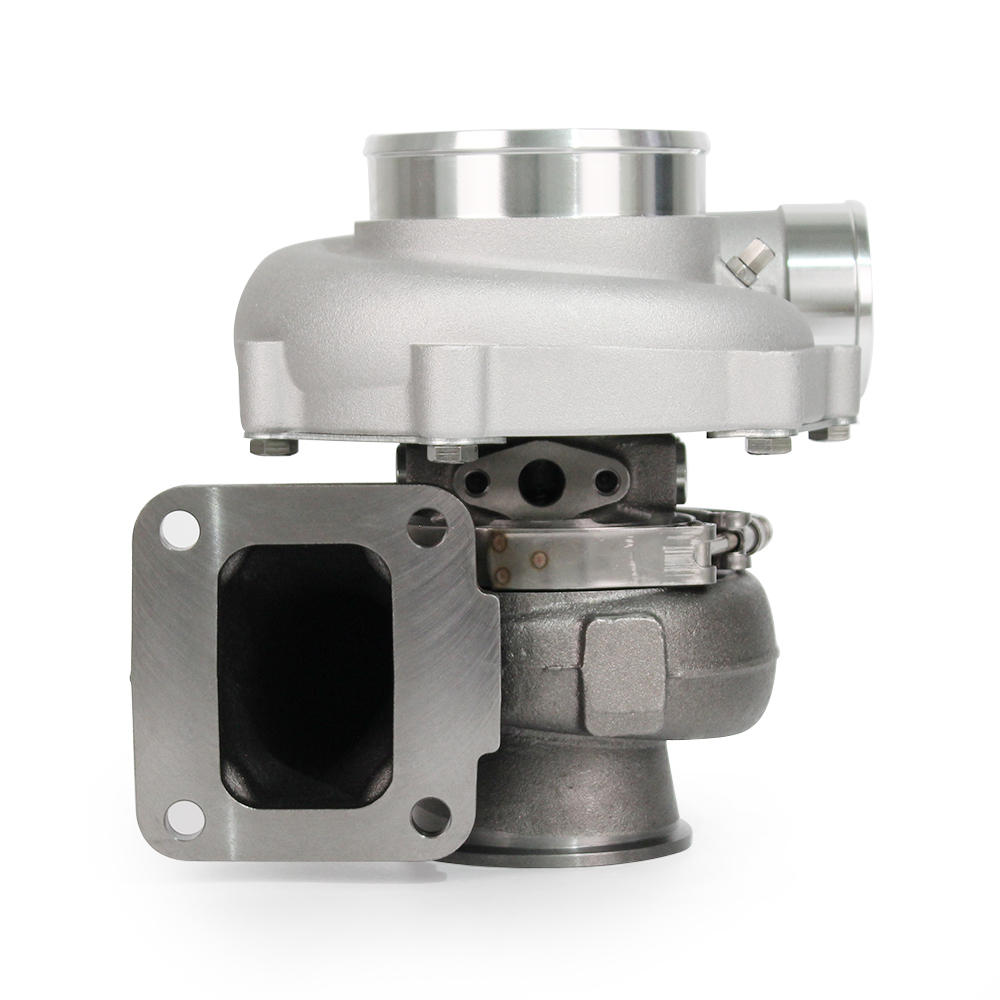

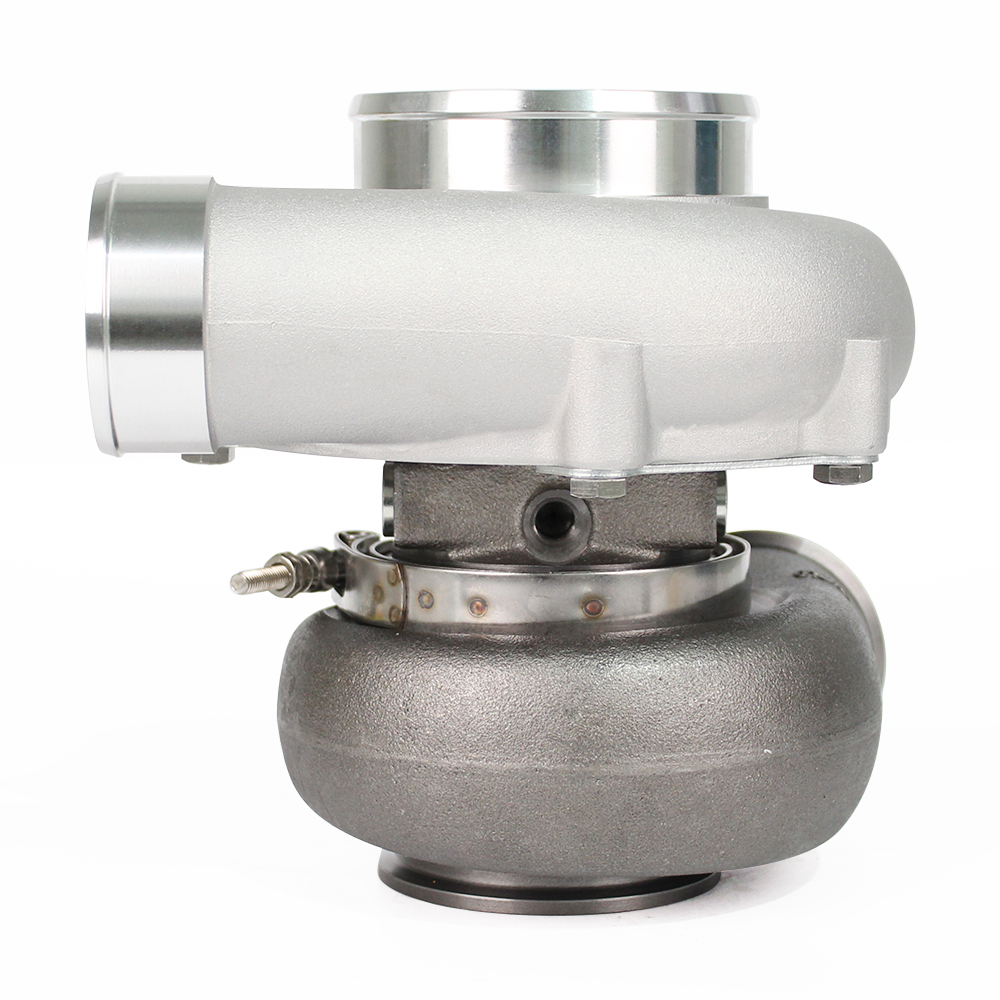

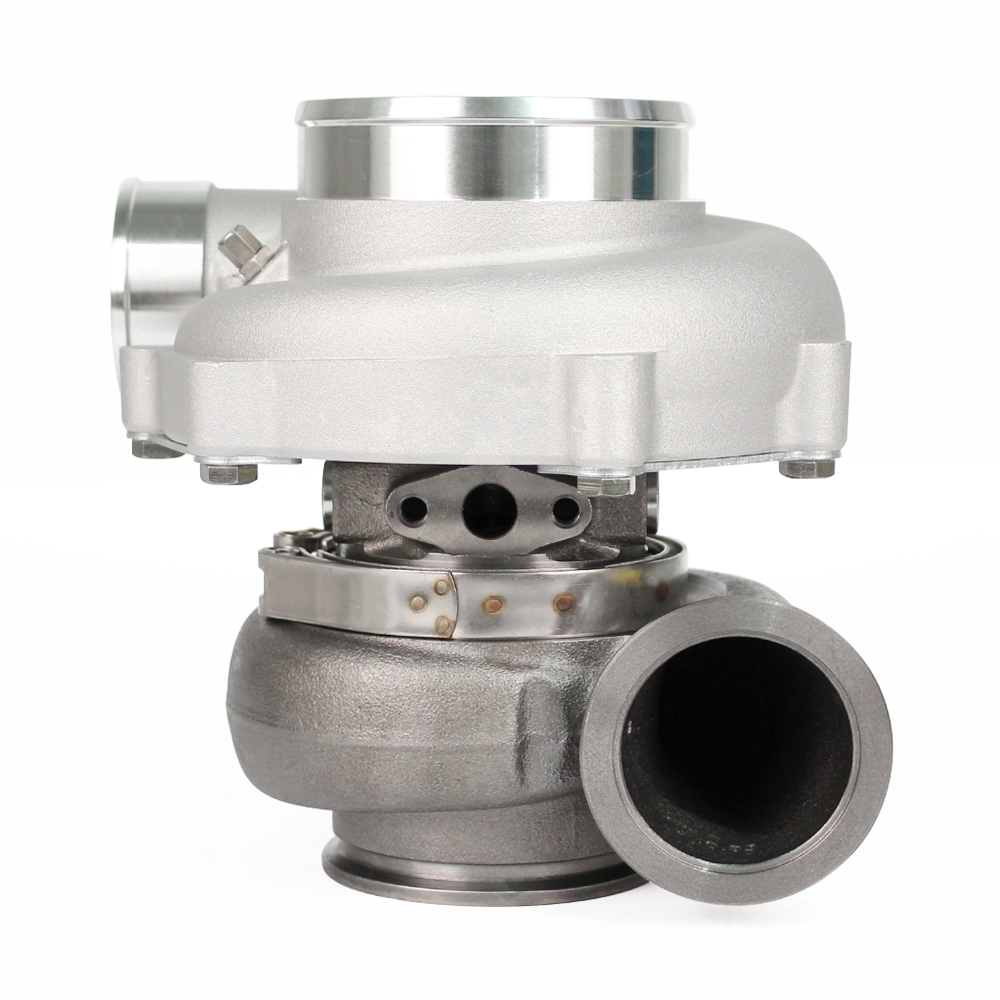

VSR 68/62 DBB Gen3 T3, T4 and DV housing options (Reverse Available)

Description

• Dual ceramic ball bearing system provides optimal turbo response
• 9 Blade Next Gen billet compressor wheel with extended tapered tip technology
• 9 Blade Next Gen aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port


  Key Details

  • Compressor Wheel: 68*84mm
  • Turbine Wheel: 68*62mm
  • Compressor Inlet: 4” Hose
  • Compressor Outlet: 2.5” Slip fit
  • Turbine Inlet: T3,T4 or DV housings DV inlet PN GT35302
  • Turbine Outlet: 3” V-Band PN GT35303
  • Water Ports: 2-M14 x 1.5
  • Oil Feed: 7/16-24 UNF with a -4AN Restrictor
  • Oil Drain: Std T3 small frame with 1.5″ bolt spacing
  • 3 options for turbine housing: T3, 0.82A/R, T4, 0.82A/R, Dual v-band .83 A/R ,1.01A/R, 1.21 A/R
