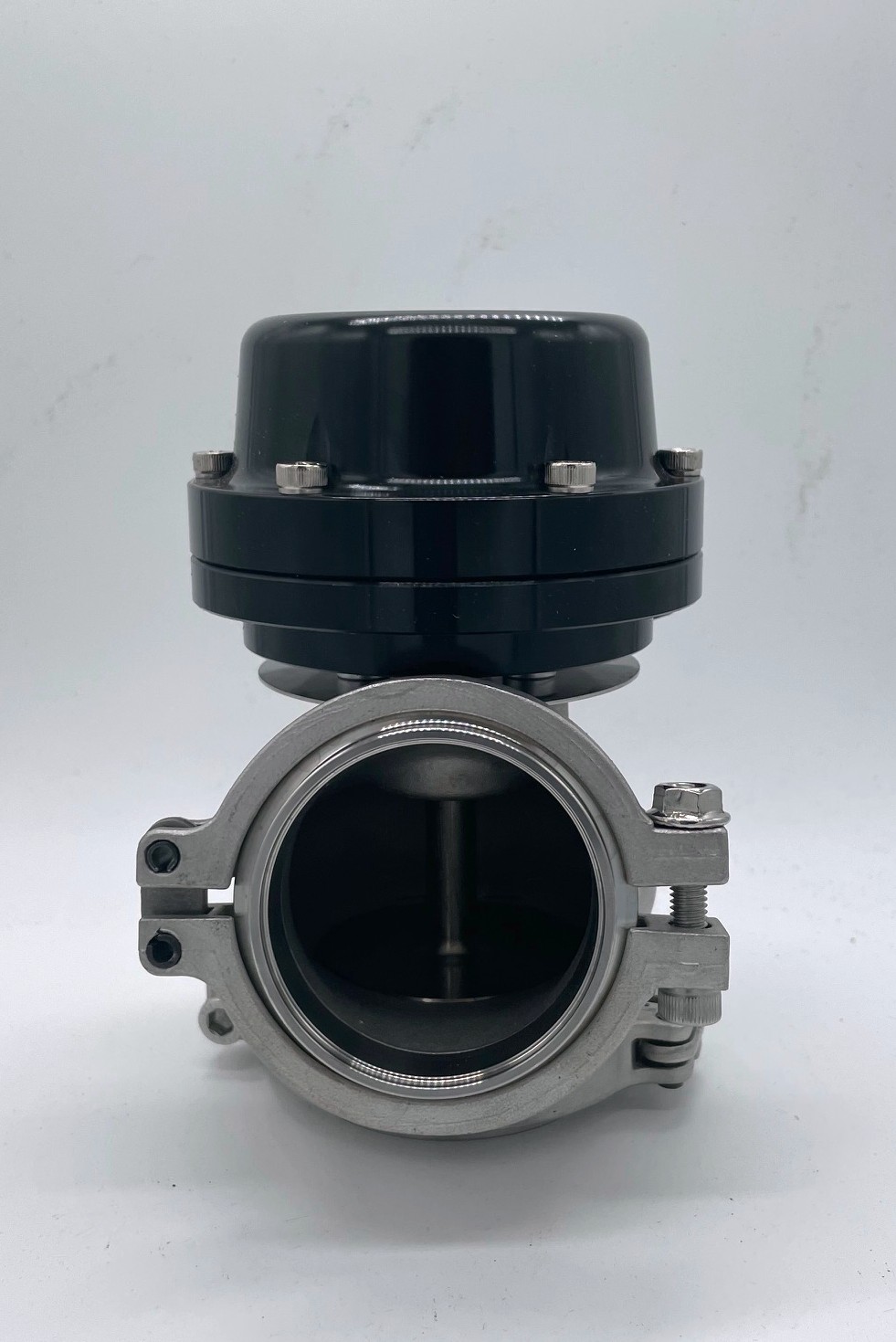

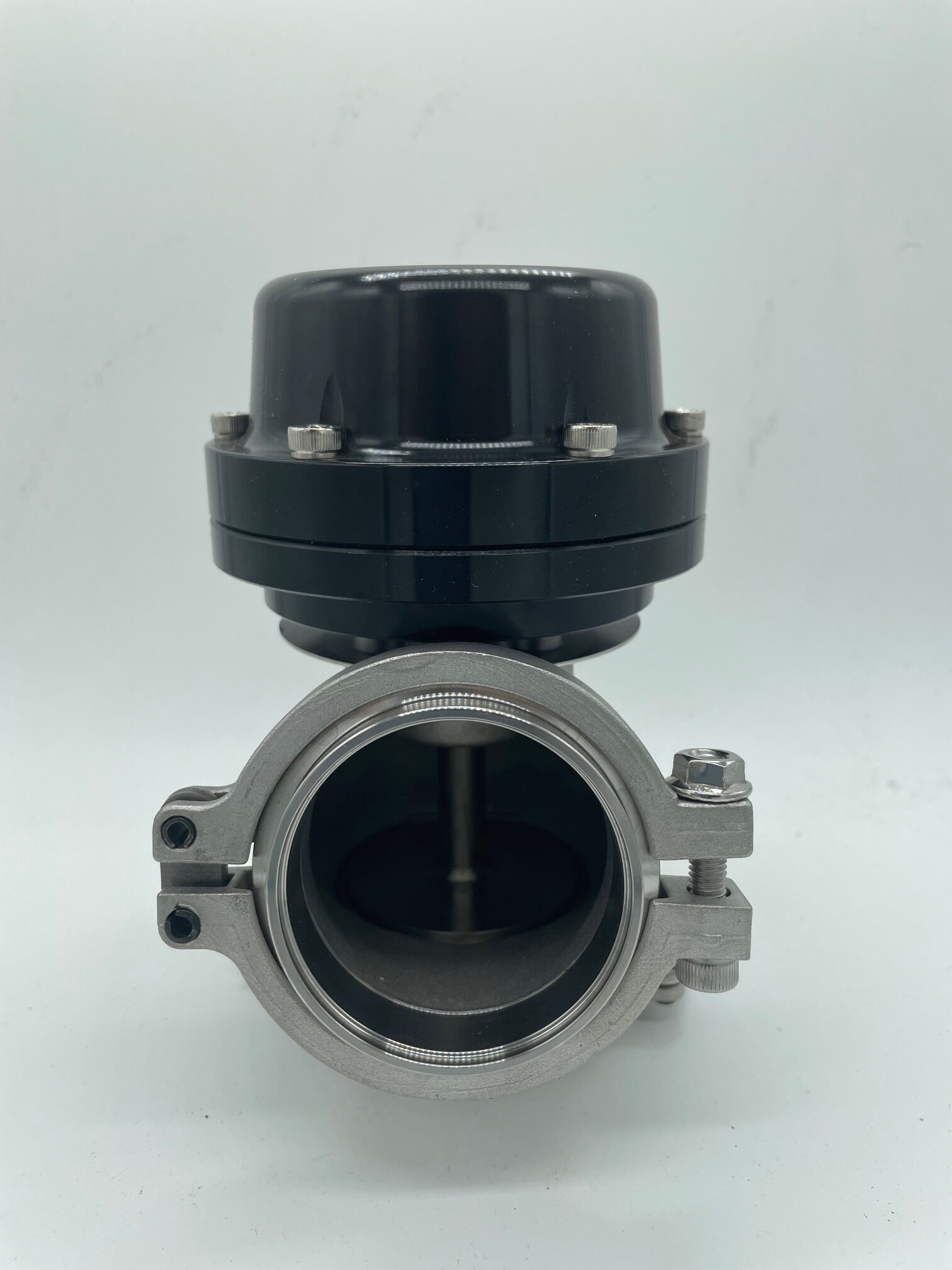

VSR 50mm Wastegate Gen2

Description

The new VSR 50 mm WG is unique in that we have finally have a reliable unit that will be able to be used for C02 boost control.

This unit will come with 7psi springs. The combo will net you 13psi with 2 springs pre-installed

Instructions for use

Please note that you should always make sure to install your fire ring in the base of the gate. Without the fire ring you will create a leak between the v-band and  WG flange.

If you are using spring pressure – Hook you pressure source incoming usually from turbo to bottom port. You will have 2 ports to select from choose based on your best location and cap the other port. Leave one hole vented on the top and cap the other two ports which are above your diaphragm.

Electronic/Dome Pressure setup If you are using a solenoid you will tee your input to the bottom coming from your pressure source.  Output of your solenoid will go to one of the top ports. You will cap the other two top port if not being used for a dome pressure sensor.
