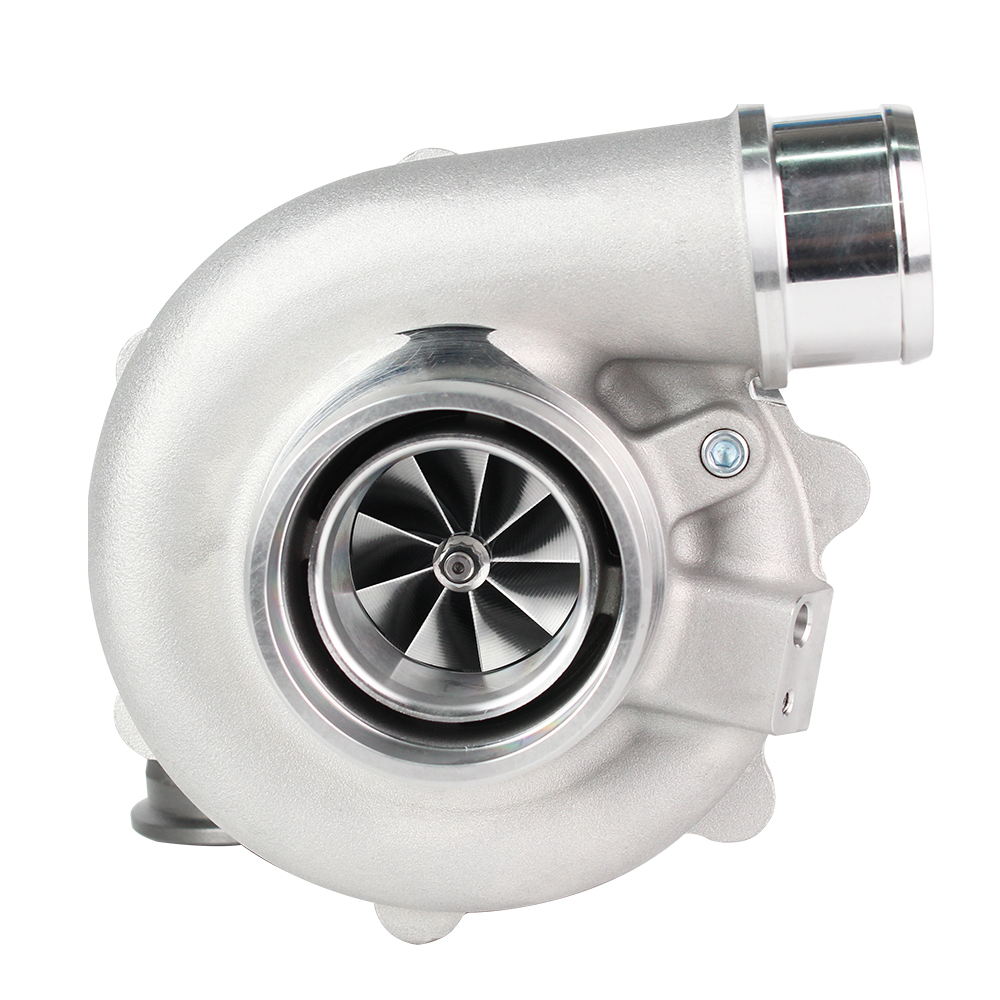

Description
- Dual Ceramic ball bearing
- 9 Blade Billet Compressor Wheel with Extended Tapered Tip Technology
- 9 Blade Inconel 713c Turbine Wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator(Working pressure 12-14 psi)
- Options for Housing .72AR DV .72T3 with adapter ,.92 DV
Description
- Compressor Wheel: 48*60mm
- Turbine Wheel: 54*49mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: 2.5″ V-Band
- Turbine Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange small frame 1.5″ bolt spacing
