Description

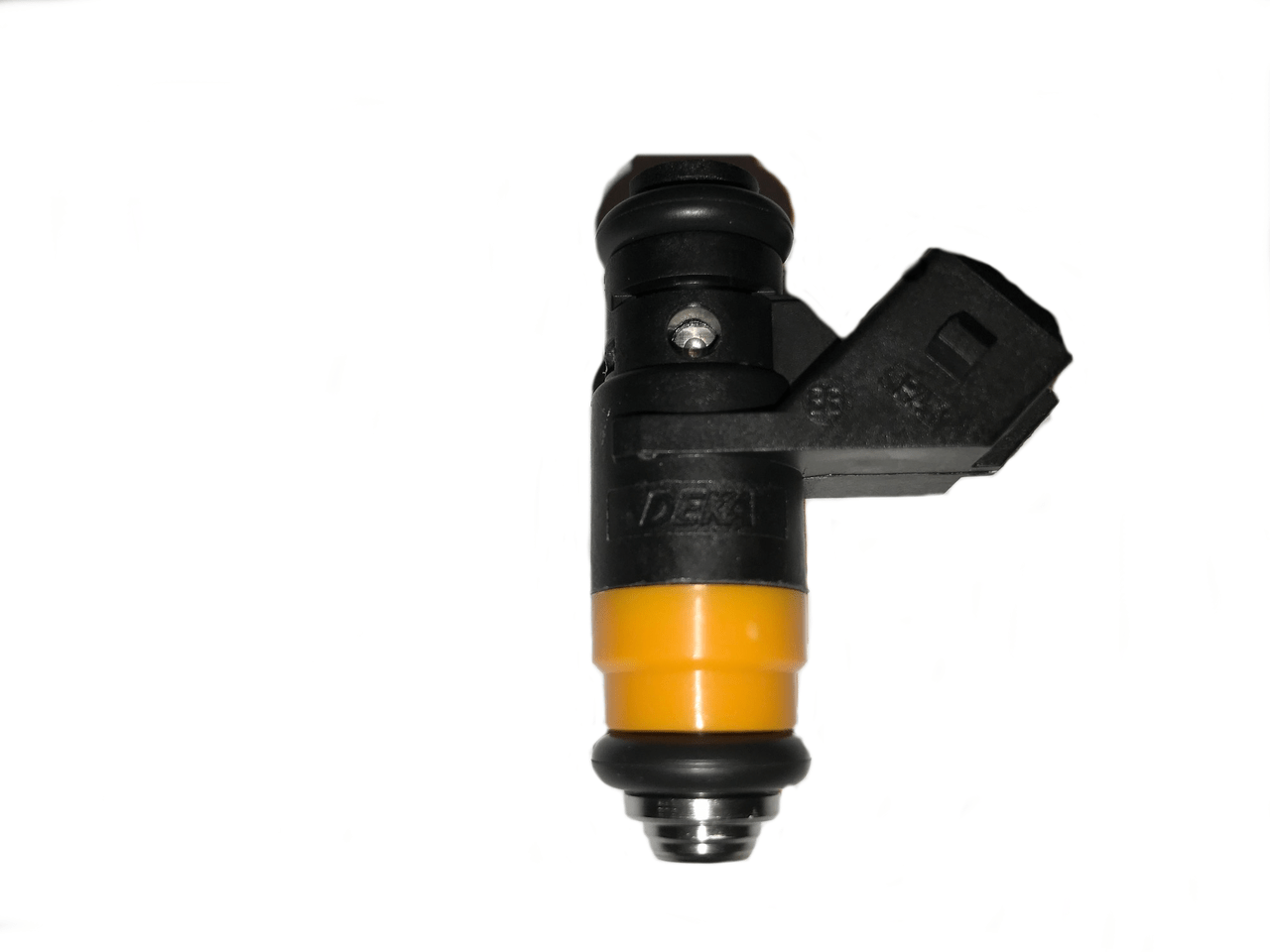

42 lb/hr Siemens Deka Fuel Injectors High Impedance (Short Style) SOLD INDIVIDUALY

Genuine Siemens / Mototron DEKA IV High Impedance Injectors

Not Forsale In California-Non (CARB) Legal

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ultra-Compact, high flow injector at just 48mm end to end! These injectors flow 42 lbs/hr at 43.5 PSI ( 3 BAR ) and up to 67 lbs/hr at 87 PSI! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip providing a true 30 degree spray pattern for improved mixture preparation. This results in lower BSFC and better idle quality than many injectors with less flow.

Features:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Specifications:
Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 42 lb/hr = 446 cc/min = 453 g/min
Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 67 lb/hr = 900 cc/min = 648 g/min
Gain:
Offset: 0.65
Turn on time 1.3 ms
Turn off time: 0.7 ms
Connector: Minitimer
Series: DEKA 4 ( DEKA IV )
Orifice Type: Multi-orifice
Spray Pattern: 30 Degree Spray Cone
Factory fitted with Viton upper and lower o-rings
48mm end to end
Equivalent Part Numbers:
Siemens FI11420 or 108-420 ( 108420)
